V Model Mixer
發(fā)布時間：2020/08/14 Pharmaceutical equipment Products 瀏覽次數(shù)：567

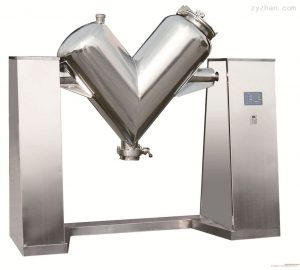

Product Name:?V Model Mixer
Purpose:?Apply to mix powder and granular material used in pharmaceutics, chemicals, food, metallurgy industry.
Features: This machine possesses all the advantages of equivalent products in home and abroad. Inequilateral tube provide sufficient mixing of material, vacuum automatic material feed in and seal butterfly valve discharge realize dustfree operation and ideal result of mixing. Tube body is made of stainless steel and polished inside and outside, clean and widely used. Equipped with self-stop device, this machine boasts delicate construction and good appearance.
Main Technique Parameter：
| Model | VH-0.5 | VH-0.5 | VH-0.5 | VH-0.5 | VH-0.5 | VH-0.5 |
| Volume(m3) | 0.5 | 1.0 | 1.5 | 2 | 2.5 | 3 |
| Feed Coefficient | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Turning Height(mm) | 2455 | 2700 | 2933 | 3200 | 3800 | 4015 |
| Tube Body Rotation Speed(r/min) | 15 | 12 | 10 | 10 | 10 | 10 |
| Power(Kw) | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 550 | 850 | 980 | 1400 | 1600 | 1800 |
| Outline Dimension(m)(L*W*H) | 2.5×1.2 | 2.95×1.4 | 3×1.6 | 3.5×1.8 | 4×1.95 | 4×2 |
